use:

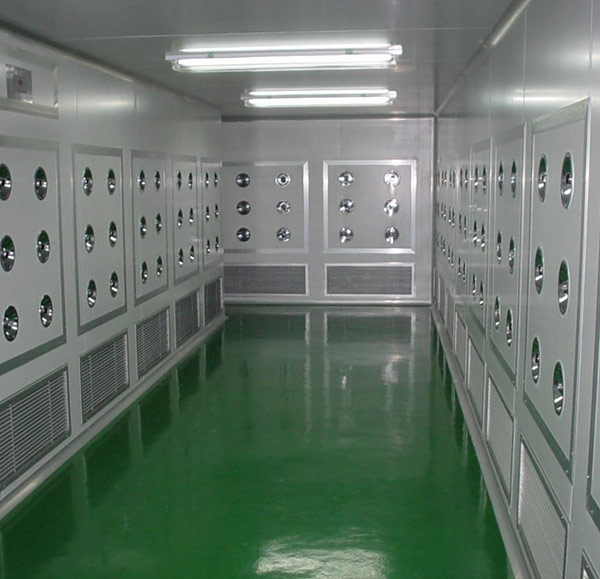

The cargo shower room is the passage for goods to enter and exit the clean room. The clean air filtered by the primary effect and the high-efficiency filter is sprayed out to remove the dust attached to the cargo to control the cleanliness. At the same time, it can also serve as an air lock chamber. Prevents internal and external air convection and stabilizes indoor pressure.
Structural features:
1. The system automatically controls the operation, double electronic interlocking, and has a photoelectric sensor.
2. The cold-rolled steel plate is made in the box body, and the outer surface is electrostatically sprayed; or all stainless steel.
3. Automatic control and voice control system.
4, the inner liner is all stainless steel.
Specifications:
|
Specification model |
HLS-1D-2000 |
HLS-2D-2000 |
HLS-2D-2300 |
HLS-3D-2300 |
|
Dimensions (L × W × H) mm |
2000×1200×2050 |
2000×2000×2050 |
2300×2000×2050 |
2300×3000×2050 |
|
Wind forest size (L × W × H) mm |
1200×1060×1880 |
1200×1860×1880 |
1500×1860×1930 |
1500×2860×1930 |
|
Number of air changes (times / hour) |
420 |
480 |
370 |
360 |
|
Wind speed (m/s)
|
18-30 |
|||
|
Number of nozzles |
12
|
24 |
24 |
36 |
|
Air shower cycle |
0-99S adjustable |
|||
|
High efficiency filter efficiency |
99.99%＠0.3μm |
|||
|
Box main material |
1.2-1.5 mm thick cold-rolled steel sheet surface electrostatic spray, matte white; all stainless steel |
|||
|
Door material and quantity |
Stainless steel double door |
|||
|
Door interlocking |
When the air is showering, the double doors are locked, and they are usually interlocked. Only one door can be opened. |
|||
|
power supply |
Three-phase 380V.50Hz |
|||
|
Fan power (W) |
1.5KW |
3.0KW |
3.0KW |
4.5KW |
|
weight |
～500kg |
～850kg |
～880kg |
～1300kg |
